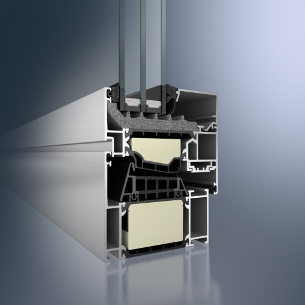

Schüco Window AWS 90.SI+

With the new aluminium window Schüco AWS 90.SI+, the benefits of aluminium are combined with pioneering thermal insulation for sustainable architecture.

The Schüco AWS 90.SI+ window not only fulfills the complex requirements for maximum thermal insulation previously restricted to PVC-U and timber windows. Excellent thermal insulation achieved using the AWS module meets the highest architectural requirements for design options with a basic depth of just 90 mm.

Combined with the concealed Schüco AvanTec fittings, transparent formats up to 160 kg can be implemented and combined with Schüco TipTronic, additional energy-saving potential in buildings can be exploited.

Features and benefits

• Highest levels of thermal insulation with a basic depth of 90 mm:

Uf value of 1.0 W/m²K (face width of 117 mm)

• Uw = 0.8 W/m²K (with Ug = 0.6 W/m²K and plastic spacers)
• Co-extruded centre gasket with fins
• Optimised insulation zone with foam-filled insulating bars
• Comprehensive range of profiles for diverse solutions
• Compatible with door series ADS 90 PL.SI
