Schueco  AWS 112 IC

      The first passive house-certified aluminium window system

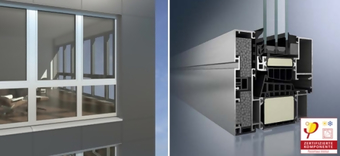

The Schüco AWS 112 IC (Insulation Cover) aluminium window system is the first aluminium window in the world that meets the strict passive house certification criteria.

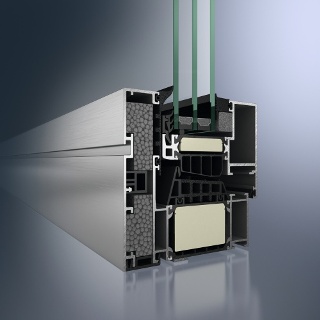

Based on the inward-opening Schüco AWS 90.SI+ window series, an additional insulation level provides passive house standard thermal insulation with a face width of just 120 mm.

The Schüco AWS 112 IC window series does not only impress due to its construction design based on a block window system in the vent area which provides exceptional thermal insulation, but also by its appealing design. The Schüco AWS 112 IC series thereby sets a new market standard for aluminium windows, combining energy-efficient building ideas with a pleasant climate for living andarchitectural design.

                                   Product benefits

• Unrivalled thermal insulation for aluminium windows with a Uf value of 0.80 W/(m²K) (with a 120mm face width) to passive house standards
• For the first time, thermal insulation of Uw = 0.75W/(m²K) with triple glazing (Ug = 0.6W/(m²K) and plastic spacer) can be achieved for an entire aluminium window
• Optimised thermal insulation due to insulated cover profile with fixing which is free from thermal bridging
• New vent frame design based on the block design to achieve narrow face widths combined with large areas of glass.
